The Trash to Paper project utilized local waste to form sheets of paper. Fiber was sourced from cardboard rolls, bottle labels, and scrap documents from recycling bins. We gathered leaves and grasses from burn piles around Riviera Resort and Sid collected fallen coconut husk from the coconut graveyard. The fibers were sorted and blended into a slurry during our papermaking workshops. Participants pulled their own sheets and explored other potential ingredients that could be upcycled into paper with a focus on redefining waste as a raw material.
By Dinacon 2022 and Dreamspace Collective: Daphne U-đổ led coptic bookbinding workshops, Sid Drmay co-hosted the papermaking workshops, Dinoj Mahendranathan sourced drying boards, Afkar Subair sourced mosquito netting, Jathujan Mahendran and Jerushan Sritharan and Jeremy Nguyen fabricated additional mould + deckles, and Amrutha Fernando prepared fiber for pulping.
my favorite destination to procure ‘Cool Water’ branded bottle labelsscraps were shredded and tornpulp dream teamthe lid of the blender was broken, this is not my usual blending posturea “mould and deckle frame” is dipped into a tub filled with water and pulp at a 45˚ anglethe sheet of paper is then transferred to another surface and pressedand left to dry in the suna fruitful platingpaper with embedded petals <3a DIY coptic sewing workshopbringing to life a library of miniature journals
Thank you for reading ☆ much love,
Daphne U-đổ ( @daphneudo )
P.S. Thank you Andy for organizing The Digital Naturalism Conference 2022, Sid for co-hosting a papermaking workshop with me, and literally everyone at Dinacon and Dreamspace Collective for the opportunity to work on this project ´· ᴗ ·`
Hannen Wolfe collected data on where over 20 “dinosaurs”, volunteers, and DreamSpace Hive “bees” looked while they were drawing for a generative art project. They used eye-tracking glasses with 3 cameras to record where the artists were looking (world view) and each eye’s movement. The videos were then analyzed to calculate where the artist was looking. Small black and white images (fiducial markers) are on the edge of the artist’s page so that the computer could track changes to the drawing or painting. A video scan of the objects was used to register when the artist looked at the object they were drawing. Currently they are working on cleaning the data to account for errors in data collection and exploring different ways to visualize the data. Once the data has been processed, they will create a generative digital artwork based on the data.
Below are heat maps of where people looked when they were drawing. Each session produces 2 heat maps that are overlaid on the drawing and a photograph of the object(s).
The main idea was to create a small, sustainable recirculatory water system that enables plants to be watered and fertilized by combining a water system and a plant/soil system, as is commonly done in an aquaponics setup. The aquatic system serves as water reservoir and nutrient source for the soil system, as it eventually would contain water organisms such as fish, molluscs or crustaceans which produce detritus and biological waste products. The water in return is filtered by running over soil and plants which take up the nutrients and assist in clearifying the water. Given that these systems can be difficult to initialize, where the ecosystem must be carefully set up, the project was intended to be modular and extendable to accommodate larger systems as well and be easily scalable.
MiniSolarPonics
## Parts List
- Arduino Uno
- Motor Controller
- MOSFET
- Electric Air Pump 3.7V
- Diode
- Capacitor
- Solar Panel 12-20V
- Lithium Battery
- Charge Controller (Charge/Discharge)
- Air Tubing
- T-connection for Air Tubing
- Water container
- Soil/Plant container
- Connection wire
- Coconut Husk
## Source Code
https://github.com/fritzfrancisco/MiniSolarPonics
A collaborative project which utilized handmade templates and drawing tools to tell the story of the Dreamspace life cycle. Themes such as environmental sustainability, community engagement, and innovation are explored through graphic imagery along the entry staircase.
Lead by Lashantha (@artist_lashantha), Jasmine (@jasminegutbrod), and Melshan (@melshan_4)
Photo by Jasmine GutbrodPhoto by Dreamspace Story LabPhoto by Dreamspace Story LabPhoto by Dreamspace Story Lab
Arriving as a graduate student in the last year of my PhD, the mind is used to focusing on specifics, not to be distracted or to waste precious time. Therefore providing an initial project based on my previous work seemed most promising, goal oriented and efficient. The idea was to implement object detection and automation to design an object/artifact with which animals could interact with. The goal was to study these interactions of animals with a novel object which could be manipulated.
CocaCallus: Callus formation in plants, induced by coconut waterCroworker: Crows being trained to collect plastic bottlesPlanktotron: A simple plankton trap using PET bottles and a light sourceSome ideas that the seemed feasible
After arriving in a place very distant from my research confinement some aspects already seemed less promising. Electricity was not readily available and internet access was not at all continuous, resulting in limited ability to test and research problems when these were encountered. Therefore, before getting frustrated about something as trivial as internet access the only sensible thing to do was spend time in the more rewarding ocean close by and, more importantly, doing this with others that could get equally excited about finding stuff on the beach or by sticking your head underwater. After seeing what amazing opportunities nature in the direct vicinity had to offer these outings became more regular with daily beach visits and nightly observations in the lagoon. Being trained in aquatic biology and having worked as a scientific diver it is important to me to get close to nature and experience it directly in person. This lead to a transition from the initial idea to implement a project in which an object/artifact is created which was merely constructed from my previous experience and of interest to me solemnly to something more holistic. It was more important for me to participate in the community and assist where needs could be met, which is why I decided to give swimming and snorkeling lessons, which were further improved by assistance from other fellow experienced Dinosaurs and which was a ton of fun.
I think it is important to make things but also reflect on why we are making these things and what implementations these may have. Teaching is a form of making which can be hard to quantify or document but is as rewarding as any other. Therefore, my project turned from "I have an idea, I want to do this" into "let's swim better and stare at things for a little bit".
Each one, teach one
Fighouse was my project at Dinacon. I attended the conference for the second half of July.
Our objective is to research fig trees as a construction material in Batticaloa and other regions of similar subtropical climate. Planted on a scaffold, fig trees let down aerial roots, which are directed over an inhabitable structure. Once the roots anchor into the ground, the trees gain access to water and nutrients. Mechanically, the roots secure the structure against forces of nature. As the individuums inosculate, they form one organism. In contrast to a structure from dead wood, which rots in humid climate, a living structure is able to fend of pathogens. It adapts to the environment and grows stronger over time.
With the scaffold in place, the structure has use from day one. After years of growth, the scaffold is not needed anymore. It may be removed or left to rot. What remains is a self-sufficient living house. If regularly pruned and properly maintained, it will keep its purpose. Otherwise, it will go back to nature. In either case, not only have we helped remove carbon from the atmosphere, we have also created a small ecosystem.
Inspiration is drawn from the living root bridges in India’s Meghalaya region and from recent research, especially in the field of Baubotanik.
Shape
For Dinacon, a structure was needed that is simple to set up, and that is easy to maintain and possibly to replicate and improve upon. With bamboo readily available, and with experience of lashing, we decided on a tent like structure in the shape of tetrahedron. It provides shade for sitting inside.
Model
On July 27, using small bamboo sticks and left-overs of metal wire, a simple model was made to get a feel for the structure and how it would be assembled.
Bio Lab workshop
On July 22, Felix organized a workshop at the Bio Lab. First we obtained cuttings and seeds. Afterwards, under the guidance of the Bio Lab’s guardian Cris, and with advice from Subair, we prepared the collected material in jars with diluted coconut water. On July 28, Cris swapped out the water because it started to ferment. The cuttings and seeds are under observation. So far, they have not been used for construction.
Photogrammetry
The trunks of two trees were digitized using photogrammetry:
After an introduction during Ricardo’s July 20 Bioblitz workshop, Dinasaurs uploaded observations to iNaturalist. All fig trees used in the project appear to be of the species Indian banyan, also known by it’s scientific name ficus benghalensis. Observations by tree location:
Figs and cuttings were obtained from fig trees in and around the DreamSpace Hive, including the Ganesha temple just outside the gate. Bamboo was provided by Thava, the owner of the adjacent Riviera Resort, home of Dinasaurs. Asides from coconut rope, we recycled PET strings cut from bottles. Andy showed how these can be used to create tight lashings when shrunk with a heat gun.
Realization
The site is across the dirt road from DreamSpace Hive. On July 29, we dug holes using a spade, then cut the bamboo with a jig saw. A tetrahedral base structure was erected and lashed with expertise from Ana, Dashan, and Kiri. The next morning, we started by preparing pieces of bamboo to be used as planters. Jeroushan drilled holes, one for each set of trees. Once the planters were in place, T. Janson, the DreamSpace gardener, filled each hole with a mix of soil and sand. We inserted fresh cuttings as well as a few ripe figs. To guide the roots to form a wall-like structure, we strung ropes and strings of recycled PET on two sides of the structure. The third side remains open for entry.
Outlook
(photo by Michael Ang)
Already on the same day, use has been found for the structure. Michael Ang set up one of the data pods, he and Tegan had created at Dinacon. Sensors are connected to the fig leaves. A sound scape emerges from a speaker.
If all goes well, in a few years, the bamboo scaffold is overgrown by figs. The little house provides shelter for members and guests of DreamSpace Academy, and for the many animals visiting every day.
If it fails, then we will learn from mistakes! Perhaps the plants need a better controlled environment, they need more maintenance, or the structure is not strong enough to withstand winds, cows, and ants.
In any case, we should think about where to go from here. For example, how can plants provide sufficient cooling for us to better enjoy the indoors? Can we use the nearby ocean for cooling? What about Mangroves, could they be used instead of figs?
Eventually, we may find ways to transform and create ecosystems to give us a comfortable and modern life, without destroying nature. Let’s experiment!
After scouting through the surroundings of DreamSpace Hive, I came across a Luffa farm and decided to make it ‘IoT-enabled” by hooking up several environmental sensors such as a temperature/ humidity sensor, soil moisture, and a light sensor to an Arduino-based microcontroller (Wio Terminal). Then came the challenge of sending this sensor data to the cloud for visualization. Since communicating via WiFi means you have to deploy the sensors within somewhat close proximity to a WiFi router, the other option was to use GSM. However, I went with using LoRa because it enables communication over very long distances. The sensor data from the sensors were sent to the cloud via a LoRaWAN gateway and the data was visualized on a dashboard. Also, the entire outdoor system was powered by solar.
I set up a SenseCAP M2 LoRaWAN Gateway inside the DreamSpace Hive and was able to receive enough signal strength for the sensors that were set up in the Luffa farm which was located a little bit far away from the gateway. Also, this meant anyone at Dinacon was able to experiment with their own LoRa nodes by connecting with this gateway.
Making Process
First of all, I had to make my project powered on all day long but there was no power outlet near the Luffa farm. So the only option to power it continuously was to use solar. So I hooked up 6 small solar panels (5V/100mA each)
All the solar panels were connected in parallel to obtain a total power of 5v/600mA
After that, I prepared a simple circuit with a TP4056 battery charger, a 18650 battery, and an MT3608 DC-DC Step-Up Converter. The idea was to connect the 18650 Lithium-ion battery to the TP4056 battery charger and connect the solar panel to the TP0456 so that the solar panel will be able to charge the 18650 battery. Also, an MT3608 DC-DC Step-Up Converter was used to keep the output voltage at 5V because the goal was to power the Wio Terminal using a regulated 5V input supply. After testing, I found out that even if the input to this converter changes from 2.7V – 4.2V, the output stayed at 5V. 2.7V is the voltage at which the TP4056 will cut off the battery from discharging and 4.2V is the fully charged state of the battery.
After soldering all the connections, I had a finished circuit. However, I thought of having an enclosure for this as well since it will be exposed outside. So I designed a simple box with a cover using Fusion 360 and 3D printed it!
Also, I had to 3D print a small hanging structure for the Wio Terminal to hang from the wooden plank.
After the box was printed, I placed my connected circuit inside the box. Also, the inbuilt charge indicator LED on the TP4056 board was replaced by a bigger LED which is exposed outside to clearly check the charging status of the battery.
The battery was installed afterward
The regulated 5V output from the circuit above was connected to the 5V pin of the Wio Terminal
Then the connected output from the MT3608 was connected to a Wio Terminal which was also connected to a temperature and humidity sensor, LoRa transceiver, and a soil moisture sensor. After doing a little bit of programming, the entire system was deployed at the Luffa farm.
Finally, all the data from sensors were sent to the LoRaWAN gateway setup at DreamSpace and then that data was pushed to the Helium LoRaWAN network server. After that, the data was sent to Azure IoT Central to easily visualize on graphs!
LoRaWAN with Arduino Workshop
I also conducted a workshop to teach about how to use a microcontroller, connect environmental sensors, code using Arduino and send sensor data to a LoRaWAN gateway!
For this workshop, I used a SenseCap LoRaWAN Dev Kit in combination with a SenseCap M2 LoRaWAN gateway and taught the attendees how to use the Wio Terminal (Arduino-based microcontroller) to view the data from a connected temperature and humidity sensor on the in-built LCD, send the obtained data to the SenseCAP M2 LoRaWAN gateway and then to the Helium LoRaWAN network sever to visualize the data on dashboards!
Mushroom-mushroom Lamp was a part of the Dreamfungi project which is a grassroots innovation project to locally research, develop and produce a biocomposite material using mycelium as an alternative sustainable material for packaging, construction, apparel and accessories industries.
Mushroom-mushroom lamp
Mushroom made out of mushroom (mycelium) material was just a thought that came out from delegates Dinacon 2022 at DreamSpace BioLab. By the time this idea came in Cris and Pramo already figured out how to make mycelium biocomposites with locally available biomass and fungi.
Contributors: Cristian Silva (Cris), Pramodya Saumyamali (Pramo), Brian Huang and Tali
How did we make a Lamp?
Making molds for the lamp
Tali and Pramo wanted to make the molds quickly with coconut shells (the cap of the mushroom) and cardboard roll (the stem of the mushroom). A PVC pipe was put inside the cardboard roll to make space for light and wire to go inside the mushroom stem.
Bio fabrication of mushroom lamp
Cris did the mycelium fabrication of the lamp with molds made by Pramo and Tali. He used Ganoderma fungi to make mushroom lamps with sawdust. After 5 days he took mycelium material out of the molds and let it grow for another few days in a growth chamber. After leaving the mushroom lamp in the growth container it got the distinct colour and texture of mycelium material.
The lamp is growing in the growth chamber
Adding the lights for the lamp
Brian made and gave one of his LED lights from the AnyLamp project. The light was set up at the bottom of the mushroom stem.
The mushroom-mushroom with AnyLamp
The Fluffynator – side project
Contributors – Cristian Silva (Cris), Brian Huang, Saad Chinoy, Marc Juul
Fluffynator is an old aroma therapy humidifier turned into an automated humidifier for making mushroom objects like the mushroom-mushroom lamp. It facilitates mycelium mat growth on top of the biomass once it is taken out of the mold and placed in the growth chamber. Arduino Uno, a temperature and humidity sensor (DHT11), LED screen and a switch were used to make the whole hack works with an old humidifier.
work in progressFluffynator
How it works:
The humidifier has five modes and the last mode is the off mode. The humidifier previously had a touch sensor which was damaged and rusted. It used to be the switch that turns off the humidifier or the change modes. We removed the rusted sensor and connect it to Arduino with a wire. Arduino can change the modes with electric pulses to the IC of the old humidifier. We then add a new switch to Arduino to change the mode to off mode before Arduino Uno and the humidity sensor starts taking measure measurements (every time when we turn on the humidifier by giving it power, we have to press the switch and make sure the humidifier is off (then everything is in synch!). When humidity is above 70% Arduino sends 5 eclectic pulses to the humidifier to shift through different modes and finally to the off mode. Once humidity is below 70% it again gives a pulse to turn the humidifier on. In this way, fluffynator maintains the humidity inside the mycelium material growth chamber without manual interventions.
Ashlin listening to the singing fish through their sonic oar
Original project description
I’d like to explore the lagoon of Batticaloa and record the sounds of the singing fish with a hydrophone, then create an installation in a public area so everyone can listen to them. I read that local fishermen put the ends of their oars in their ears to amplify the sounds of the fish, so I’d like to incorporate oars into the installation to pay homage to this practice.
How it turned out
Due to the logistical situation on the ground, I had a bit less time than anticipated to finish my project. However, with help from a few friends I succeeded in creating the Sonic Oar.
I had heard that the singing fish were loudest and most active just around the full moon. Though I arrived about a week after that, I found the fish still active around 10pm each night when I started recording. I didn’t do particularly scientific research to determine exactly when they started and stopped, since my project focused on the sounds themselves more than their behavior.
One night I recorded off one of the fishing platforms at the Riviera Resort, dipping my hydrophone just a few feet into Batticaloa Lagoon. It was amazing how immediately their gargling, froggy croaks became audible. There were obviously many fish vocalizing simultaneously. However, with a monophonic hydrophone it was hard to localize how many fish there were or how far apart they were. It would be fun to come back with a stereo pair of hydrophones to get a better sense of how they are moving or not moving and how spaced apart they are. I’ll be bringing a pair of hydrophones on my next underwater recording project!
The next night Lucii and I followed in the footsteps of J.W. Lange and recorded from Kallady Bridge. From the middle of the bridge, we lowered the hydrophone about 15 feet below the water, noticeably deeper than at Riviera. The fish were audible, but there was more background noise from traffic on the bridge, even at that depth. We tried another spot towards the eastern side of the bridge, and the fish were much quieter – in fact, barely audible.
Creating the sonic oar installation itself turned out to be quite simple. I learned from my experience at Dinacon 2 in Gamboa that power is one of the most crucial components of any hacking project. Since I wasn’t sure exactly what would be available in Batticaloa, I brought a battery pack and all the cables and electronics I needed with me. All I needed to do was record the singing fish, load up the recordings onto an SD card, find an oar, and attach the electronics to the oar.
I also learned that when using a Raspberry Pi for media playback purposes, it is helpful to set up a script so that you can load new media files via an SD card without having to boot up and connect to the Pi. Here’s a gist that explains my Raspberry Pi set up. I ultimately included a playlist featuring one of the recordings Betty had made at the full moon from a boat, along with one of mine made from the shore at Riviera Resort.
Electronics set up on the end of the oar
The basic setup for the electronics was a Raspberry Pi with a IQaudio DigiAMP+ hat on it, a 12V battery (behind the oar in the photo above) powering the amplifier and a Surface Transducer from Sparkfun. A startup script on the Pi played back audio files from an inserted SD card, and the sound was amplified through the DigiAmp+ hat and sent through the surface transducer, which turned the surface of the oar into a speaker.
The surface transducer was attached to the blade of a local fishing oar, that I was told was made of mango wood. This was a happy surprise for me, since mango is known for its resonance and is used to make some musical instruments.
Once I got the electronics set up, I was able to hear the recordings through the wood for the first time. I was surprised at how well the sounds transferred through the surface. I used a set of in-ear binaural microphones (which record sound in a way that mimics how our ears do) to record myself listening to the resonance. The audio from this recording is included below, with a video of me listening.
Ashlin listening to the sounds of the singing fish
Overall, I’m pleased with how this project turned out. I think it pays homage to the beauty and ecological curiosities of Batticaloa in a simple way. I wish more people could have experienced the installation, but hopefully this documentation makes it accessible to a few more. Thank you to Shanjeevan for procuring the oar, without which this project wouldn’t be possible. Thanks to Betty for the additional singing fish recording, and thanks to Lucii, Skye, Harold and Andy for their help with installation and moving things from place to place!
Trash For Trade: Abitharani Jeyachandran, Jayanthan Amalanathan.
With help & inspiration from fellow Dinasaurs Andy Quitmeyer, Michael Ang, and William Kennedy at Dinacon 2022
See also: Bendy the plastic heat bender, built by Brian Huang
THE HYDRAULIC PRESS

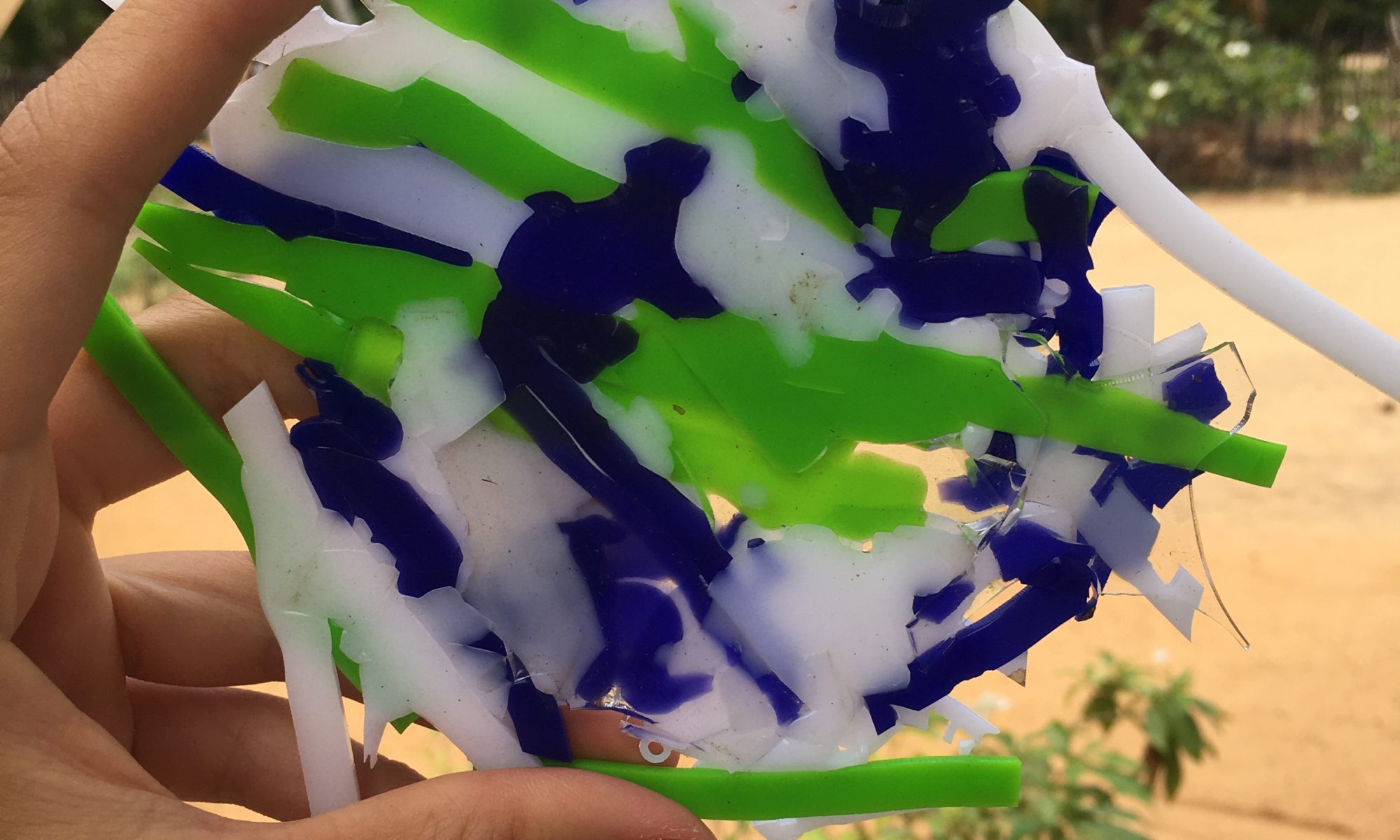

This press was built specifically for pressing heated acrylic scrap together for acrylic upcycling. The design was based around the materials at hand; it’s a modification of pre-existing designs like this one by petercd and this from Precious Plastics.
Upcycling Used Plastic into Raw Materials
Often people think of plastics shredding as the first part of this process, but it’s not a requirement – you can do this all without a shredder! The basic process is to apply heat to a pile of plastic, then apply pressure to turn them into flat sheets. Plastics like HDPE require minimal pressure, so they do not necessarily need a 8-ton hydraulic press (generally, the pressure supplied by a T-Shirt press will work fine). Acrylic, on the other hand, relies on high pressure after being heated in order to fuse together.
Check out the zine for upcycling acrylic with the hydraulic press:
Laser Cutting and Forming Plastics
Various Acrylic and HDPE upcycled plastics, melted, laser cut, and formed into new artifactsOn the far left (green): shredded HDPE melted into a sheet, laser cut into a design, then re-formed into a bowl. Right: the upcycled object lives on as a lamp, made by Brian and WilliamFirst day of the finished press! Thanks Sajeev and Jathujan!
